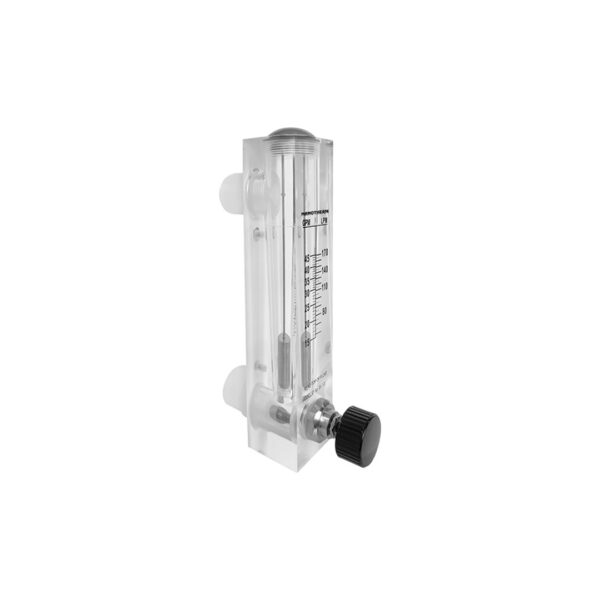

1. Introduction to Acrylic Tube Rotameter MT-S110RT

The Acrylic Tube Rotameter MT-S110RT is one of the most economical and practical flow measurement solutions used in various industrial applications. Designed for measuring the flow of non-corrosive gases and liquids, this rotameter is widely recognized for its simplicity, cost-effectiveness, visibility, and ease of installation. The instrument operates based on the variable area principle, where the fluid flow lifts a float inside a tapered acrylic tube, allowing the flow rate to be read directly from the scale.

As industries continue to seek dependable and efficient flow monitoring technologies, the popularity of Acrylic Tube Rotameters remains strong due to their rugged construction, minimal maintenance requirements, and wide measurement range (10:1 rangeability). The MT-S110RT model is engineered specifically for general process environments where reliability and affordability are essential.

2. Main Features of Acrylic Tube Rotameter MT-S110RT

  • Easy to Use: The rotameter is designed for straightforward installation and reading, requiring no external power source.

  • Optional Flow Control Valve: For processes where flow rate adjustment is needed, a control valve can be integrated.

  • Suitable for Liquid and Gas Flow Measurement: Its versatility makes it ideal for chemical plants, laboratories, water treatment, and air handling applications.

  • Cost-Effective Flow Meter: It is considered one of the most economical instruments for accurate flow measurement.

  • Clear and Direct Scale Reading: The transparent acrylic tube provides excellent visibility, allowing users to read the flow measurement easily.

  • Simple to Maintain and Replace: Spare parts are inexpensive and maintenance does not require specialized tools or training.

  • Wide 10:1 Rangeability: The float moves smoothly inside the tapered tube, providing reliable measurement across a wide flow range.

3. Working Principle of MT-S110RT (Variable Area Principle)

The Acrylic Tube Rotameter MT-S110RT works based on the variable area principle. Inside its tapered acrylic tube, there is a floating element (float). As fluid flows upward through the tube:

  1. The fluid pushes the float upward.

  2. The float rises until the upward fluid force equals the weight of the float.

  3. The vertical position of the float corresponds directly to the flow rate.

  4. This position can be read easily against the graduated scale on the acrylic tube.

When the flow increases, the float rises, creating a larger passage area. When the flow decreases, the float falls, reducing the area. This direct relationship allows simple and reliable visual flow measurement.

4. Standard Design and Material Construction

The MT-S110RT is built with high-quality materials suitable for industrial environments:

Component Material Notes
Tube Polycarbonate (PC) Provides transparency and durability
Connections SS / Brass / PVC Selection depends on medium and chemical compatibility
Float Stainless Steel or Glass Depends on medium density and flow range
Gasket NBR Ensures leak-free sealing
O-Ring Silicone (optional) Enhances long-term sealing performance

5. Standard Parameters

  • Size: ¼” to 1″

  • Maximum Pressure: 6–8 bar

  • Maximum Temperature: Up to 60°C

  • Accuracy: ±4% of Full Scale

  • Connection Type: BSP or NPT (Male or Female depending on model)

  • Mounting: Panel Mounted

  • Rangeability: 10:1 typical operating ratio

These parameters make the Acrylic Tube Rotameter MT-S110RT well-suited for low-to-medium flow rate applications where precise indication is required.

6. Product Overview

The MT-S110RT is typically used in:

  • Water treatment units

  • Gas flow measurement in air supply systems

  • Laboratory and research process setups

  • Cooling systems and circulation loops

  • Industrial and commercial HVAC systems

Because the unit is compact and designed for panel installation, it is widely used in control panels and flow monitoring boards.

7. Advantages of Using Acrylic Tube Rotameter MT-S110RT

  1. No External Power Required: Operates purely on fluid dynamics.

  2. Low Installation Cost: Simple pipeline integration.

  3. Stable Performance: No mechanical friction or moving linkage system.

  4. Visual Flow Indication: Immediate and intuitive reading.

  5. Minimal Maintenance: Only periodic tube cleaning and float inspection needed.

  6. Customization Available: Can be configured for different media and calibration units.

  7. Reliable for Continuous Operation: Ideal for non-corrosive service environments.

8. Typical Applications

  • Water Supply & Filtration Systems

  • Medical & Laboratory Air Systems

  • Gas Distribution and Control Lines

  • Light Chemical Processes

  • Cooling and Heating Circulation Loops

  • Food Processing and Beverage Facilities (when ordered with food-grade materials)

9. Why Choose MT-S110RT?

Choosing the Acrylic Tube Rotameter MT-S110RT means selecting a dependable, accurate, low-maintenance, and cost-efficient solution for fluid flow monitoring. With its clear scale visibility, wide rangeability, and optional control valve, it is specifically designed to support both operational efficiency and process accuracy.

10.Conclusion

The Acrylic Tube Rotameter MT-S110RT stands out as an ideal flow measurement device for industries looking for a durable, affordable, and easy-to-operate solution. With its transparent acrylic tube, versatile construction materials, simple mechanism, and wide operational range, it remains one of the most reliable and widely used flow meters in general industrial operations.
