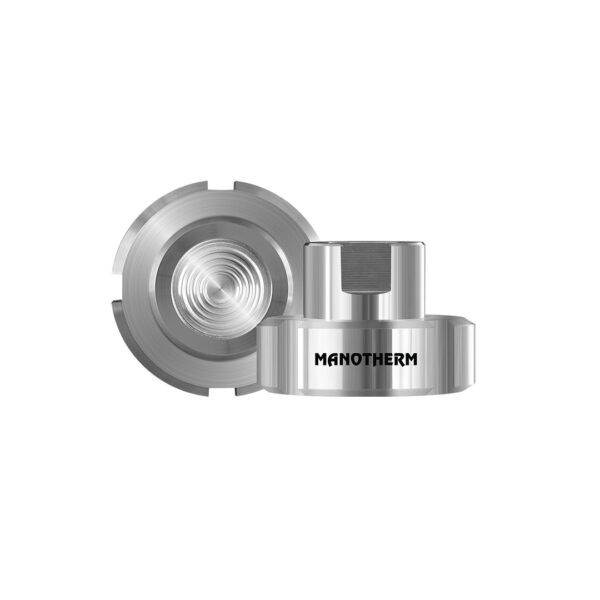

1. Introduction to Diaphragm Seal with Sterile Connection MT-S100SN
The Diaphragm Seal with Sterile Connection MT-S100SN is a precision-engineered interface device designed to isolate pressure instruments from the process medium in applications that demand the highest standards of hygiene and purity. This diaphragm seal ensures direct, accurate pressure transmission while preventing contamination, product buildup, or bacterial growth. It is primarily used in industries where sterility, cleanability, and sanitary handling are essential, such as food & beverage, ice cream and dairy, pharmaceuticals, and cosmetics production.
This model features quick disconnect/connect capability, allowing easy removal for cleaning, calibration, or replacement without compromising system integrity. The laser-welded flush diaphragm provides a completely smooth surface, free from crevices where product residue or microorganisms could accumulate. This ensures compliance with hygienic design guidelines and reduces cleaning time, downtime, and maintenance costs.
2. Key Features of MT-S100SN Diaphragm Seal with Sterile Connection
The Diaphragm Seal with Sterile Connection MT-S100SN offers the following performance features:
-
Flush type design with smooth hygienic wetted surfaces
-
Quick connect / disconnect to reduce downtime during cleaning and inspection
-
Laser-welded flush diaphragm for high durability and sanitary performance
-
Compatibility with multiple sterile process connection standards:
-
ISS / IDF
-
SMS
-
APV / RJT
-
DIN 11851
-
-
Designed for Beverage & Food production environments
-
Suitable for Dairy & Ice Cream processing lines
-
Ideal for Cosmetics & Pharmaceutical industries
-
Supports direct assembly to pressure measuring instruments
These features make the MT-S100SN a reliable sterile sealing solution that prevents contamination while maintaining accuracy in pressure measurement.
3. Standard Parameters
| Specification | Description |
|---|---|
| Range Type | 1 bar … 40 bar |
| Chamber Material | AISI 316 Stainless Steel |
| Diaphragm Material | AISI 316 Stainless Steel |
| Instrument Connection | ½” BSP (F) or ½” NPT (F) |
| Process Connection | ISS / IDF / APV / RJT / SMS / DIN 11851 (Union Nut Style) |
| Assembly | Direct connection |
These parameters ensure compatibility with hygienic pipeline systems and international sanitary standards.
4. Hygienic Design and Cleanability
The design of the Diaphragm Seal with Sterile Connection MT-S100SN prioritizes clean-in-place (CIP) and sterilize-in-place (SIP) operations.
Smooth Contact Surfaces
The flush diaphragm provides a smooth, polished surface that prevents process media from sticking or accumulating.
Dead-Space Free Design
There are no cavities or gaps where product residue, bacteria, or biofilm could develop.
Sanitization Friendly
The seal withstands aggressive cleaning chemicals, hot water, and high-temperature steam sterilization.
5. Material Advantages
Stainless Steel AISI 316 Construction
-
Ensures high corrosion resistance in acidic, alkaline, or saline environments.
-
Maintains structural stability under thermal cycling.
Laser-Welded Diaphragm
-
Offers exceptional mechanical strength and long operational life.
-
Prevents leakage between diaphragm and seal body.
Together, these materials ensure durability, system hygiene, and accurate pressure transmission.
6. Applications of MT-S100SN Diaphragm Seal
The Diaphragm Seal with Sterile Connection MT-S100SN is specifically designed for sterile and hygienic processing industries:
Food & Beverage Industry
Used in:
-
Fruit juice blending lines
-
Carbonated drink production
-
Brewing and fermentation tanks
-
Bottling and aseptic filling systems
Dairy & Ice Cream Industry
Used in:
-
Milk pasteurization equipment
-
Cream separation systems
-
Yogurt and ice cream production lines
Pharmaceutical Industry
Used in:
-
Fermenters
-
Bioreactors
-
Cleanroom-grade mixing systems
Cosmetics Industry
Used in:
-
Lotion homogenizers
-
Cream blending vessels
-
Perfume and personal-care production tanks
In each case, the diaphragm seal ensures accurate monitoring without compromising product purity.
7. Operating Principle
The Diaphragm Seal functions by transferring applied pressure from the process medium to the pressure measuring instrument through a sealed internal fluid.
Step-by-Step Function:
-
Process pressure presses against the flush diaphragm.
-
The diaphragm deflects proportional to the applied pressure.
-
The displacement is transmitted through the fill fluid inside the seal.
-
The internal movement mechanism of the gauge or transmitter converts this into a pressure reading.
Because the process medium never contacts the instrument, contamination risk is eliminated, and clogging is prevented.
8. Compatibility and Installation
This diaphragm seal can be directly assembled to:
-
Pressure Gauges
-
Pressure Switches
-
Pressure Transmitters
-
Differential Pressure Instruments
Process Connections
Its compatibility with ISS / IDF, SMS, APV/RJT, and DIN 11851 ensures easy installation in existing sanitary piping systems.
Instrument Connections
Standard ½” BSP (F) or ½” NPT (F) allows integration with most industrial pressure devices.
9. Advantages of Using MT-S100SN
Using the Diaphragm Seal with Sterile Connection MT-S100SN provides measurable operational benefits:
-
Improved Product Quality
No contamination from external particles or mechanical movement materials. -
Reduction in Downtime
Quick disconnect allows fast cleaning and calibration. -
Higher Measurement Accuracy
No clogging or buildup that can distort pressure readings. -
Long Equipment Life
Stainless steel construction resists corrosion and wear. -
Regulatory Compliance
Supports sanitary and hygienic standards required in food and pharmaceutical production.
10. Conclusion
The Diaphragm Seal with Sterile Connection MT-S100SN is an essential component for hygienic process control systems where sterility, reliability, and measurement accuracy are critical. With its smooth flush diaphragm, quick serviceability, and compatibility with multiple sanitary connection standards, it ensures hygienic operation while maintaining precise and stable pressure measurement. Its rugged stainless-steel construction and hygienic design make it an ideal solution for all sanitary sectors including food & beverage, dairy, pharmaceuticals, and cosmetics manufacturing.
