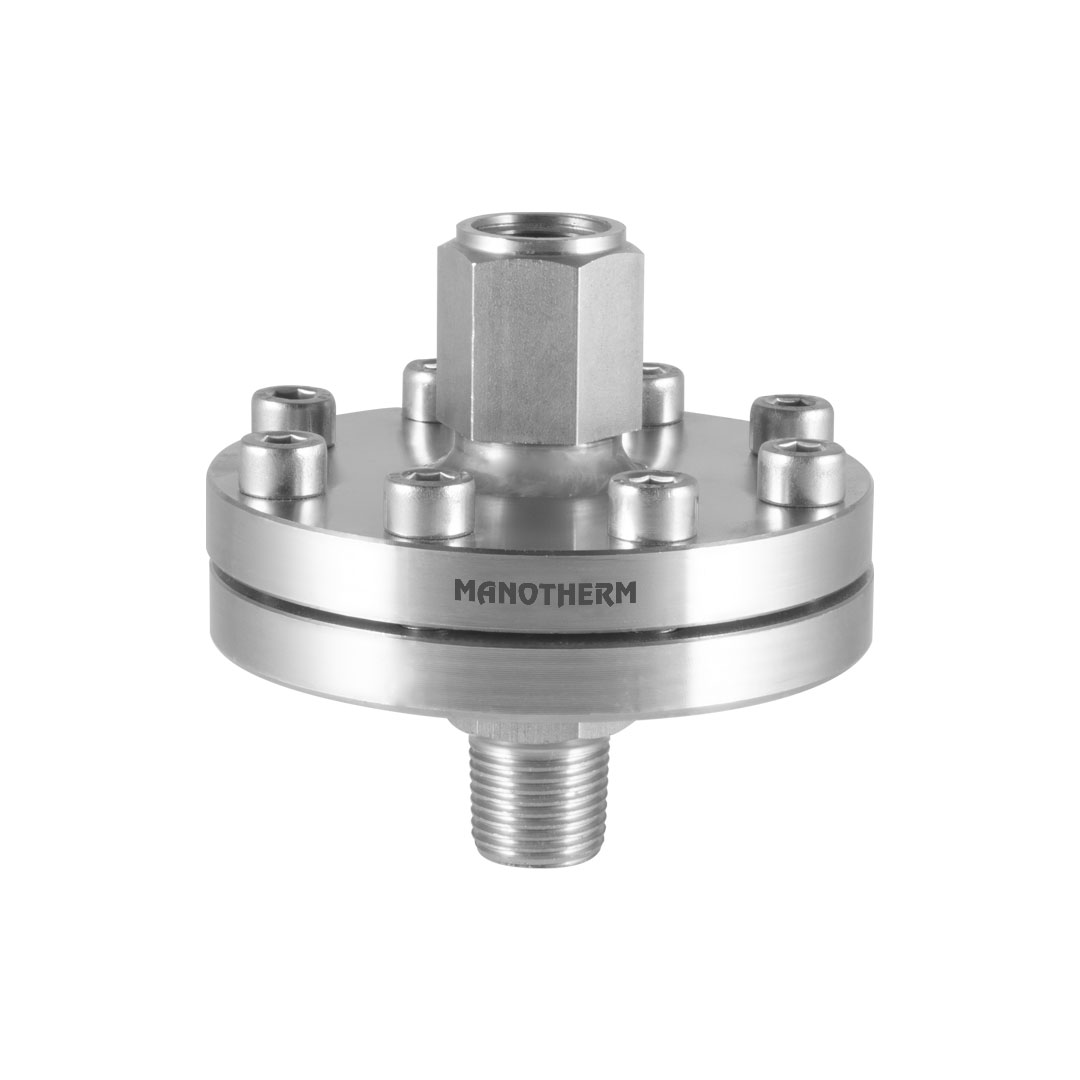

1. Introduction to Threaded Diaphragm Seal MT-S100TD
The Threaded Diaphragm Seal MT-S100TD is an advanced pressure isolation system engineered for demanding process environments, particularly where corrosive, viscous, or high-pressure media are present. This model is specifically designed to ensure accurate pressure transmission while protecting sensitive instruments such as pressure gauges, transmitters, and switches from direct exposure to harsh process fluids. By creating a separation barrier between the medium and the measuring instrument, the MT-S100TD guarantees long-term reliability, safety, and stable measurement performance across a variety of industrial applications.
Unlike standard diaphragm seal designs, this threaded diaphragm seal incorporates a forged chamber construction and a laser-welded diaphragm, ensuring exceptional mechanical strength and extended service life in high-vibration and high-pressure installations. Additionally, direct assembly connection options allow this seal to be integrated into systems without requiring additional adapters, simplifying installation and reducing potential leak points.
2. Construction Features and Design Advantages
The Threaded Diaphragm Seal MT-S100TD is engineered with precision and durability in mind, focusing on high efficiency in continuous industrial operation.
-
Direct Chamber Construction:
The seal features forged top and bottom chambers, which provide a rigid and high-strength structure. This minimizes stress deformation and ensures precise pressure transmission even under fluctuating operating conditions. -
Laser-Welded Diaphragm:
The diaphragm is laser-welded, offering superior sealing integrity and resistance to fatigue. This welding method eliminates micro-porosity risks and allows continuous operation under high pressure and vibration. -
Optional Exotic Materials:
While standard construction uses SS 316 AISI, optional exotic alloys such as Hastelloy, Monel, or Duplex can be provided for processes involving highly corrosive, aggressive, or extreme-temperature media. -
PTFE Gasket Sealing:
The chamber interface incorporates PTFE gaskets, providing enhanced chemical resistance and long-term sealing stability, even when exposed to aggressive compounds. -
Direct Assembly Interface:
Instrument and process connections are available in both BSP and NPT thread forms, ensuring compatibility with global pipeline standards.
The combination of these engineered features makes the Threaded Diaphragm Seal MT-S100TD a reliable solution in applications where instrument protection and precise pressure measurement are critical.
3. Process Media Compatibility
The Threaded Diaphragm Seal MT-S100TD is developed for use with corrosive, contaminated, or highly viscous media, where direct contact between the medium and the pressure instrument would create measurement errors or equipment damage.
Supported media types include:
-
Corrosive liquids (acids, alkalis, chlorinated solutions)
-
Viscous fluids (heavy oils, petrochemical residues, adhesives)
-
Particle-containing slurries
-
High-temperature process media
Because the diaphragm and wetted parts can be customized in exotic alloy materials, the seal maintains long-lasting structural integrity even in the presence of chemical attack, abrasive components, or extreme pH conditions.
4. High-Pressure and High-Vibration Performance
This diaphragm seal is specifically engineered for:
-
High-pressure systems, with a measurement range of -1 to 400 bar
-
High-vibration equipment, such as pumps, turbines, and compressors
-
Dynamic process conditions, where pulsation damping is required
The rigid forged chamber and laser-welded diaphragm significantly reduce the risk of mechanical failure when exposed to continuous vibration. The result is stable and reliable pressure readings, improved safety, and minimized maintenance downtime.
5. Separation System and Isolation Function
The core function of the Threaded Diaphragm Seal MT-S100TD is to provide complete separation between the process media and the measuring instrument. A silicon-based fill fluid transmits pressure from the diaphragm to the instrument with high accuracy. This prevents process media from entering the instrument, which helps:
-
Protect instrument internals from corrosion, clogging, or contamination
-
Extend instrument service life
-
Maintain accuracy and calibration stability over long periods
-
Ensure safe operation in hazardous environments
This isolation capability is crucial in applications such as chemical processing, refinery operations, wastewater treatment, and industrial gas handling systems.
6. Standard Parameters and Technical Specification
| Parameter | Specification |
|---|---|
| Pressure Range (type) | -1…400 bar |
| Chamber Material (Top / Bottom) | SS 316 AISI |
| Diaphragm Material | SS 316 AISI (optional exotic alloys available) |
| Gasket Material | PTFE |
| Instrument Connection | ½” BSP (F) / ½” NPT (F) |
| Process Connection | ½” BSP (M) / ½” NPT (M) |
| Seal Fluid | Silicon-based fill fluid |
| Assembly Type | Direct Assembly |
7. Applications and Industry Usage
The Threaded Diaphragm Seal MT-S100TD is widely used in industries that require high reliability in pressure measurement systems:
-
Petrochemical & Refining Plants
-
Oil & Gas Production Facilities
-
Pharmaceutical Manufacturing Systems
-
Power Generation Turbines & Boilers
-
Water Treatment & Desalination Plants
-
Chemical and Acid Production Lines
Its ability to operate under continuous vibration, handle high-pressure media, and maintain separation from corrosive or viscous fluids makes it suitable for the most demanding industrial environments.
8. Conclusion
The Threaded Diaphragm Seal MT-S100TD stands as a high-performance solution for pressure measurement applications requiring instrument protection, media isolation, and accurate pressure transmission. Its forged, laser-welded construction, compatibility with corrosive and viscous media, and high-pressure endurance make it a reliable choice across critical industrial systems. Whether installed in chemical reactors, pump stations, refinery pipelines, or pharmaceutical vessels, this diaphragm seal ensures long-term durability and precise measurement performance.
