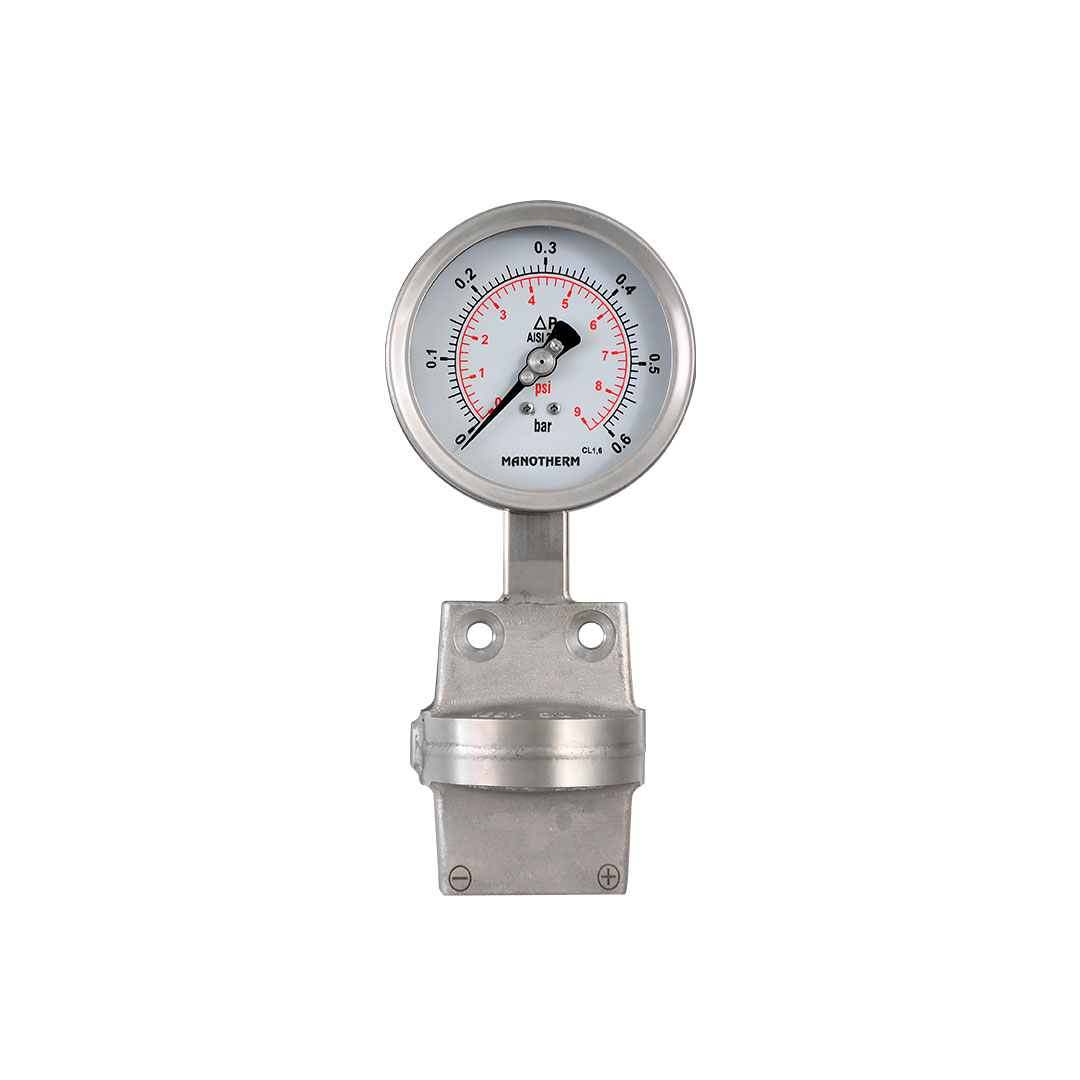

1. Introduction to Differential Pressure Gauge MT-P110DP
The Differential Pressure Gauge MT-P110DP is a specialized diaphragm-type measuring instrument designed to monitor the pressure difference between two points in a process system. This type of gauge is widely used in filtration systems, pump monitoring, flow measurement, level measurement in sealed tanks, and applications where small changes in differential pressure must be measured accurately. Whether in chemical processing, petrochemical installations, HVAC systems, or industrial gas distribution networks, the MT-P110DP delivers reliable and precise performance even under demanding operating conditions.
Differential pressure gauges are essential for ensuring the stability and safety of industrial processes. They provide instant visual indication of pressure differences, enabling operators to detect system blockages, filter clogging, pump malfunction, or flow reduction before they lead to failure. The MT-P110DP stands out due to its diaphragm sensing technology, solid mechanical structure, and easy integration into existing pipeline systems.
2. Key Design Features of MT-P110DP
The Differential Pressure Gauge MT-P110DP is designed for efficiency, durability, and user convenience. The following core specifications highlight its capabilities:
-
Dial Size: Available in 100DN and 160DN (100 mm or 160 mm), which ensures clear and accurate readability from various distances.
-
Pressure Range: 0…60 mbar up to …40 bar, making it suitable for both very low and moderate differential pressures.
-
Mounting Pattern: Bottom connection, Direct mounting configuration, simplifies installation and reduces the need for additional support fixtures.
-
Process Connection: 2 x F (NPT ¼”) with 37 mm center-to-center distance, allowing easy attachment to most differential pressure points in standard industrial pipeline setups.
-
Ingress Protection: IP65, providing dust resistance and protection from low-pressure water jets, suitable for harsh industrial environments.
-
Execution: Dry execution or Dry but fillable, allowing flexibility for vibration damping using glycerin or compatible filling fluids if necessary.
These features make the MT-P110DP suitable for continuous industrial use where consistent measurement accuracy and long-term reliability are required.
3. Diaphragm Sensing Technology
The MT-P110DP operates based on diaphragm differential pressure sensing, which is especially effective for applications involving low-pressure differentials. A diaphragm separates two isolated pressure chambers. The pressure difference between the two sides causes the diaphragm to deflect proportionally. This deflection is then mechanically transmitted to the gauge pointer through a high-precision linkage system.
Advantages of diaphragm-based differential measurement include:
-
High sensitivity to low pressures
-
Stable measurement even in vibration-prone environments
-
No direct contact between the process media and the internal movement
-
Suitable for corrosive or contaminated fluids when used with compatible diaphragm materials
This makes the MT-P110DP ideal for measuring pressure drops across filters, strainers, pipelines, valves, or heat exchangers, where even small changes require attention.
4. Dial and Scale Customization Options
The 100DN and 160DN dial sizes offer excellent visibility for operators. The scale can be customized in mbar, bar, kPa, or psi, depending on the application and customer preference. Double-scale dials can be provided for systems that require dual-unit monitoring.
The large dial ensures that readings can be viewed from a distance, making the gauge suitable for installations in elevated or enclosed equipment spaces.
5. Installation and Mounting Considerations
The Bottom, Direct mounting configuration is designed to simplify integration into industrial piping systems. The ¼” NPT (F) dual process connections with 37 mm center spacing are positioned to connect directly to two pressure ports without the need for complex adapters.
Best practice installation recommendations include:
-
Mounting the gauge at eye level for optimal readability
-
Ensuring the differential pressure lines are clean and free of particulate matter
-
Using isolation valves for maintenance without system shutdown
-
Avoiding installation near excessive vibration unless glycerin filling is used
When fillable execution is selected, vibration impact is minimized, ensuring smoother pointer movement and longer instrument life.
6. Application Areas
The Differential Pressure Gauge MT-P110DP is well-suited for use in industries that require precise monitoring of pressure variations. Key applications include:
-
Filtration Monitoring: Detecting clogging in oil, air, gas, or water filters.
-
Pump Efficiency Monitoring: Evaluating inlet vs. outlet pressure to detect performance drop.
-
Ventilation and HVAC Systems: Measuring airflow resistance across filters and ducts.
-
Process Gas Flow Systems: Monitoring pressure drop across flow elements.
-
Chemical and Petrochemical Processing: Safely controlling pressure conditions and detecting abnormal flow behavior.
-
Power Plants and Boilers: Supervising pressure differences across heat exchangers and condenser units.
With its rugged design and diaphragm sensing mechanism, the MT-P110DP performs reliably even in corrosive or particulate-heavy media when suitable materials and protective configurations are chosen.
7. Advantages of Using MT-P110DP
The MT-P110DP provides several key advantages:
-
High accuracy and sensitivity for detecting even small pressure deviations
-
Durable construction suitable for harsh industrial environments
-
Flexible execution options (Dry or Fillable) to match vibration and stability needs
-
Simple direct mounting and standard connection sizes for easy installation
-
Clear and large dial scale ensuring operator safety and operational convenience
-
IP65 protection ensures outdoor and indoor industrial use
These benefits help extend equipment life, improve system efficiency, and prevent costly system failures.
8. Conclusion
The Differential Pressure Gauge MT-P110DP offers a reliable, precise, and efficient solution for monitoring pressure differences in industrial systems. Its diaphragm sensing technology, sturdy mechanical design, flexible mounting configuration, and customizable scale make it an excellent choice for a wide range of pressure monitoring applications. Whether used in filtration systems, fluid control networks, or industrial processing lines, the MT-P110DP ensures accurate measurement, operational safety, and long-term durability.
