Description

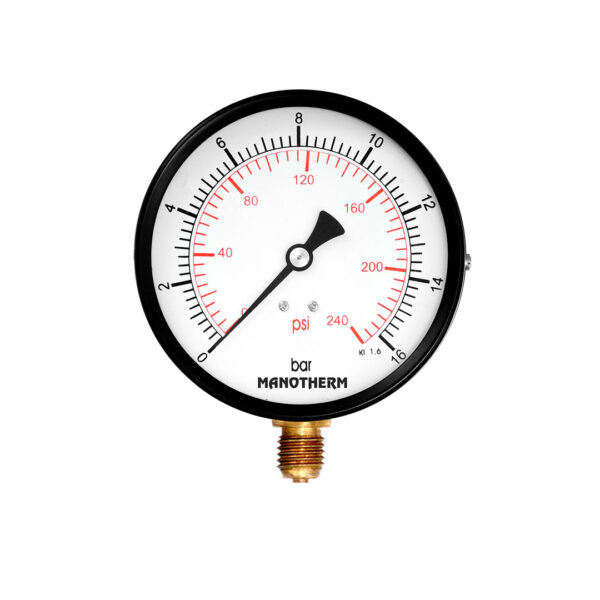

1. Introduction to Utility Pressure Gauge MT-P100BT
The Utility pressure gauge MT-P100BT is a reliable and widely used pressure measuring instrument designed for general industrial applications. It is engineered to provide accurate, stable, and consistent pressure readings in environments where performance and durability are required. Whether installed in manufacturing systems, hydraulic units, pneumatic lines, or utility service stations, this pressure gauge delivers long-term operational value thanks to its robust design and precise measurement functionality.
This pressure gauge is available in multiple dial sizes, including 40 mm (1½”), 50 mm (2″), 63 mm (2½”), and 100 mm (4″), which allows users to choose the appropriate display visibility depending on installation location and viewing distance. The gauge operates within a wide pressure range of 0…400 bar, making it well-suited for low-pressure, medium-pressure, and high-pressure mechanical measurement conditions.
The Utility pressure gauge MT-P100BT features a bottom connection with ¼” NPT (M) process thread, ensuring universal compatibility with a broad range of industrial pipelines, fittings, and instrumentation interfaces. Additionally, the direct mounting pattern makes installation quick and efficient, especially in compact layouts. The gauge is designed for dry execution, meaning it operates without a liquid-filling medium, suitable for environments with stable vibration and temperature levels.
2. Key Features and Technical Specifications
To understand the performance capability of the Utility pressure gauge MT-P100BT, the following key specifications are essential:
| Feature | Specification |
|---|---|
| Dial Sizes | 40 mm / 50 mm / 63 mm / 100 mm |
| Pressure Range | 0…400 bar |
| Process Connection | ¼” NPT (M) |
| Mounting Style | Bottom connection (Direct mounting) |
| Execution | Dry type (optional fillable versions available on request) |
These specifications make the MT-P100BT suitable for versatile working environments where different pressure scale requirements exist. Its broad range makes it ideal for common utility pipeline systems and general service industries.
3. Applications of Utility Pressure Gauge MT-P100BT
The Utility pressure gauge MT-P100BT is engineered for a wide variety of industrial, commercial, and technical applications. Because of its flexible dial size options, reliable mechanical design, and universal mounting connection, it is widely used in:
-
Water supply and wastewater systems
-
HVAC and building mechanical utilities
-
Compressed air preparation and distribution systems
-
Industrial hydraulic equipment
-
Pneumatic circuits and automation lines
-
Gas and chemical processing equipment
-
Food and pharmaceutical manufacturing utilities
Its ability to measure pressure accurately across a wide range makes it suitable for both low and high-pressure service conditions.
4. Mechanical Design and Durability
The Utility pressure gauge MT-P100BT is built with strong structural components including a corrosion-resistant case, a vibration-tolerant internal mechanism, and a clear, easy-to-read dial. The pointer movement is engineered to provide smooth, precise, and stable readings. The dial face includes clear numerical markings and high contrast visibility to prevent reading errors.
The internal Bourdon tube mechanism is designed to convert pressure changes into mechanical pointer movement. This mechanism ensures reliable performance with minimal drift over time, supporting long-term operational stability.
Because the gauge is dry execution, it is ideal for stable environments that do not expose the instrument to excessive vibration. However, upon request, the gauge can be produced in a fillable type, allowing users to add glycerin or silicone oil for vibration damping.
5. Advantages of Using MT-P100BT in Industrial Systems
The Utility pressure gauge MT-P100BT offers several operational and technical advantages:
-
Cost-effective pressure monitoring for general utilities and service applications.
-
Available in multiple sizes, allowing flexibility in installation and visibility requirements.
-
Wide pressure range up to 400 bar, suitable for a broad scope of operational needs.
-
Direct bottom mount capability ensures stable attachment and easy installation.
-
¼” NPT process connection provides universal compatibility in various pipelines.
-
Reliable and low maintenance, requiring no external power source.
These benefits make the MT-P100BT a preferred choice for technicians, system integrators, and maintenance engineers seeking a dependable and easy-to-use pressure monitoring solution.
6. Installation and Mounting Guidelines
The Utility pressure gauge MT-P100BT is designed for direct bottom mounting, allowing simple installation onto pipelines, valves, regulators, and control panels. The ¼” NPT (M) threaded process connection ensures secure sealing when installed correctly with appropriate PTFE tape or thread seal compound.
When installing:
-
Ensure the system pressure is isolated before attaching the gauge.
-
Mount the gauge upright for easiest reading.
-
Avoid installing in areas with severe vibration unless using a glycerin-filled version.
-
After installation, slowly apply pressure to verify the gauge responds smoothly.
Proper mounting ensures longevity and maintains measurement accuracy.
7. Why Choose the Utility Pressure Gauge MT-P100BT
Choosing the Utility pressure gauge MT-P100BT provides users with confidence in stable, accurate measurement performance. It combines durability, functionality, and affordability in a compact, easy-to-install design. Whether in a factory environment, workshop service line, pump station, air compressor room, or fluid conditioning unit, this gauge performs reliably and requires minimal maintenance.
Its multi-size availability and wide pressure range options support both new system construction and replacement applications, making it a versatile standard choice across industries.
