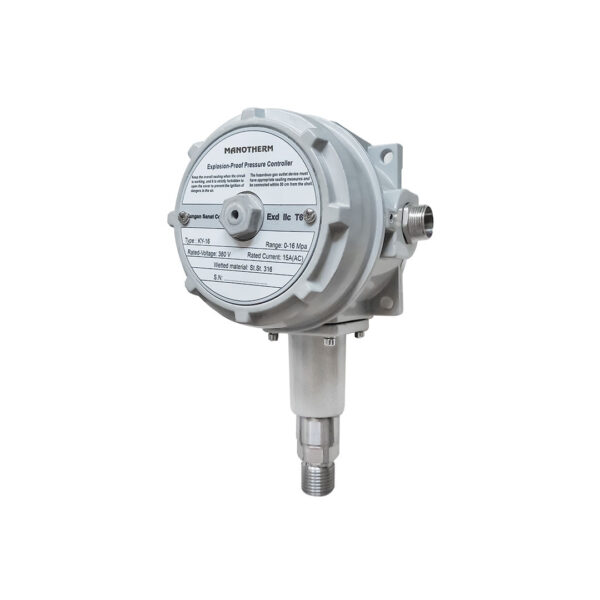

1. Introduction to Pressure Switch MT-P100PS
The Pressure Switch MT-P100PS is a high-performance industrial pressure monitoring device designed to provide accurate switching control in a wide range of critical applications. It plays a vital role in process control systems where safety, reliability, and precision are top priorities. By detecting preset pressure levels, this switch activates or deactivates the electrical circuit, allowing automated control over pumps, compressors, valves, and various industrial equipment.
What sets the Pressure Switch MT-P100PS apart is its robust construction, stainless-steel welded pressure sensor, hermetically sealed electrical options, and high resistance to extreme environmental conditions. This switch ensures dependable operation even in environments involving high pressure, vibration, moisture, dust, or explosive atmospheres.
Industries such as petrochemical plants, oil and gas pipelines, refineries, power utilities, chemical processing plants, and heavy machinery manufacturing rely on the MT-P100PS model due to its proven accuracy, durability, and adaptability.
2. Key Features of Pressure Switch MT-P100PS
The Pressure Switch MT-P100PS has been engineered to meet demanding process conditions while ensuring long service life and minimal maintenance. The following features highlight its primary advantages:
-
Welded 316 stainless steel pressure sensor or flanged pressure sensor options
-
Completely sealed enclosure for maximum environmental protection
-
One or two SPDT hermetically sealed switches for reliable output
-
Adjustable working pressure range for versatile application needs
-
Modular terminal wiring for easy installation and connection
-
Availability of diaphragm or bellows type welded pressure sensors
-
Various microswitch configurations available for operational flexibility
-
Suitable for explosive, dusty, and high-pressure industrial atmospheres
-
Ideal for oil pipelines, petrochemical refineries, power plants, and industrial processing environments
These features combine to create a high-integrity device designed for performance stability and long-term functionality.
3. Product Overview
The Pressure Switch MT-P100PS series is built to deliver precise pressure monitoring and switching capabilities. It integrates seamlessly into process automation systems, ensuring consistent performance even under fluctuating pressure conditions.
Its design utilizes a welded stainless-steel sensing element, providing exceptional corrosion resistance and mechanical strength. The hermetically sealed switching mechanism helps maintain stable electrical operation and prevents contamination or moisture ingress.
Whether used to activate alarms, control flow systems, start pumps, or stop compressors, the Pressure Switch MT-P100PS ensures accurate response and dependable safety control.
4. Operating Principle
When process pressure enters the sensing chamber, the diaphragm or bellows expands in proportion to the pressure level. This mechanical displacement triggers the microswitch, which opens or closes the electrical contacts based on the preset setpoint.
setpoint adjustment is simple and highly accurate. Once configured, the switch maintains stable performance even under varying load conditions or temperature fluctuations. Hermetically sealed SPDT switching ensures minimal wear and consistent operation over extended service cycles.
5. Standard Parameters
Below are the standard specifications for the Pressure Switch MT-P100PS:
Working Temperature: -50°C to +80°C
Set-Point Error: ±1% of range, switching repeat accuracy ±1.5%
Enclosure: Die-cast aluminum with epoxy coating
Output Switch: One or two SPDT switches, wired as Normally Open (NO) or Normally Closed (NC)
Optional Output: One or two DPDT switch output configurations
Electrical Rating: 15A resistive at 125/250/480 VAC
Weight: Approximately 1.6 kg (varies by model)
Electrical Connection: 3/4″ NPTF (Explosion-proof connection available)
Pressure Connection: Refer to pressure sensor diagram
Vibration Resistance: 2.5G from 5–500 Hz
Enclosure Protection: IP65
These parameters ensure compatibility with industrial safety standards and reliability in varied operational conditions.
6. Applications of Pressure Switch MT-P100PS
The Pressure Switch MT-P100PS is widely used across industries that require reliable automatic control triggered by pressure. It is suitable for systems where pressure needs to be monitored continuously, and immediate switching response is critical. Key application areas include:
-
Oil and gas pipelines
-
Petrochemical refineries
-
Chemical process plants
-
Boiler monitoring and pump control
-
Machine-building and factory automation
-
Power generation and utility services
-
Hazardous or explosive atmospheres with dust or gas accumulation
Its rugged construction allows it to operate effectively in extreme industrial conditions where temperature, pressure, and environmental impact may fluctuate rapidly.
7. Benefits of Using Pressure Switch MT-P100PS
Using the Pressure Switch MT-P100PS helps improve overall system performance and reliability:
-
Accurate and consistent switching operation
-
Reduced risk of system failure or overpressure incidents
-
Suitable for corrosive and hazardous media environments
-
Longer operational lifespan due to stainless-steel construction
-
Flexible installation options for different industrial configurations
-
Low maintenance requirements thanks to sealed components
-
High vibration resistance ensures stability
8. Installation and Maintenance
For best performance, the Pressure Switch MT-P100PS should be installed according to the recommended mounting orientation and electrical wiring guidelines. It is important to ensure proper sealing when installing in hazardous environments.
Maintenance is minimal due to its sealed design; however, periodic system calibration and set-point verification are recommended to maintain accuracy over time.
9. Conclusion
The Pressure Switch MT-P100PS stands as a high-quality pressure control solution engineered for even the most demanding industrial environments. Its welded stainless-steel sensor, hermetically sealed switch options, adjustable pressure range, and rugged enclosure make it a reliable choice for ensuring safe and stable pressure control. Whether used in oil pipelines, petrochemical facilities, power plants, or general industrial processes, it provides accurate performance and operational assurance.
