1. Introduction to Cooling Element MT-A100CE

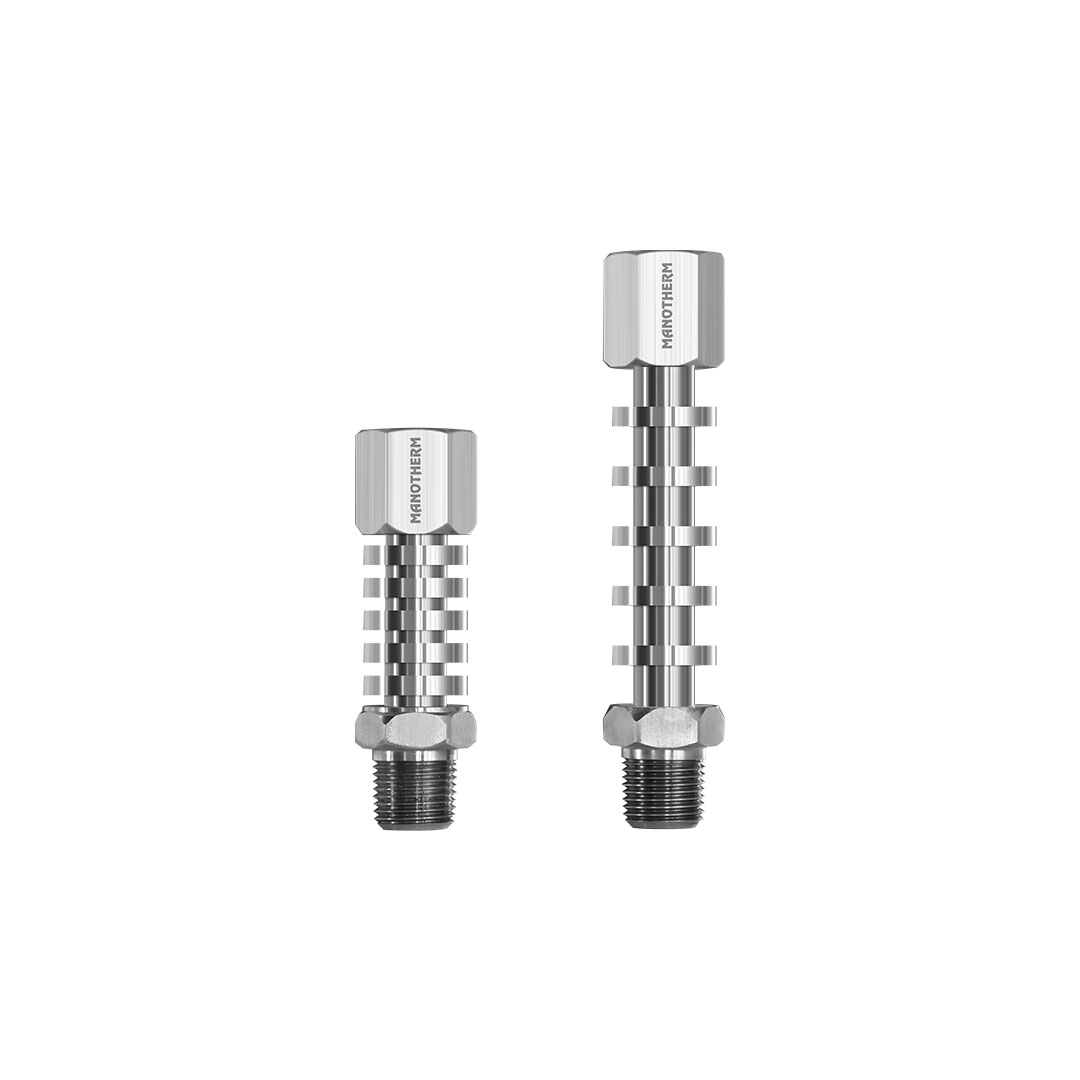

The Cooling Element MT-A100CE is a specialized accessory designed for pressure measuring instruments operating in systems with elevated medium temperatures. In many industrial applications, pressure gauges, transmitters, and switches are exposed to high process temperatures that can affect measurement accuracy and damage internal sensing components. The MT-A100CE helps reduce the temperature transfer from the process media to the measuring instrument, ensuring safe operation and long-term stability.
This cooling element is installed between the process line and the pressure measuring device. It allows the medium to naturally cool down before reaching the sensitive internal components of the instrument. The design is robust, reliable, and suitable for a broad range of pressure measurement applications across various industries.
2. Purpose and Function of Cooling Element MT-A100CE
When pressure instruments operate in environments with elevated medium temperatures, there is a significant risk of overheating, thermal stress, and damage to internal sensors. The Cooling Element MT-A100CE eliminates this risk by acting as a thermal barrier.
-
It reduces heat transfer from the process medium to the pressure instrument.
-
Maintains measurement accuracy by ensuring stable working temperatures.
-
Extends the instrument’s service life and performance reliability.
-
Protects pressure gauges, transmitters, and switches from thermal failure.
This makes MT-A100CE a critical fitting for applications where temperature conditions exceed the safe operational range of standard pressure measuring instruments.
3. Key Features of MT-A100CE
The Cooling Element MT-A100CE comes with several enhanced features designed for durability, stability, and convenience:
-
All Variable Designs: Allows flexibility in integration based on system layouts.
-
Suitable for Thread-Screwing Pressure Instruments: Compatible with threaded pressure measurement devices.
-
Ideal for High Medium Temperatures: Ensures safe operation even when the process temperature reaches up to 250°C.
-
High-Strength Material: Constructed with AISI SS316, offering corrosion resistance and high mechanical durability.
-
Wide Connection Compatibility: Available in both ½” BSP (F/M) and ½” NPT (F/M) connection options.
-
High Working Pressure Capacity: Supports working pressures up to 600 bar.
-
Lightweight Design: Approximate weight of the element is ~290 g, allowing easy installation and handling.
These features collectively ensure high reliability and compatibility with various types of pressure measuring devices.
4. Industrial Applications
The Cooling Element MT-A100CE is used across multiple sectors where temperature management is critical:
-
Oil & Gas Processing Units
-
Chemical and Petrochemical Plants
-
Steam Boilers and Heat Exchangers
-
Refineries and Power Generation Facilities
-
Pipeline Monitoring Systems
-
High-Temperature Hydraulic and Pneumatic Systems
In these environments, the MT-A100CE provides safe and accurate pressure measurement by preventing heat damage to pressure instruments.
5. Material and Construction Quality
The MT-A100CE is built from AISI SS316 stainless steel, ensuring:
-
High Corrosion Resistance: Suitable for aggressive chemical and gaseous environments.
-
Extended Durability: Withstands thermal cycling and mechanical stress.
-
Compatibility with Various Mediums: Works well with liquids, gases, and steam.
The stainless-steel design also ensures hygiene in clean environments such as food processing and pharmaceutical industries, where contamination and corrosion resistance are essential.
6. Connection and Mounting Configurations
The Cooling Element MT-A100CE is designed with flexible installation configurations to meet various system requirements:
| Section | Connection Type | Thread Standard |
|---|---|---|
| Instrument Connection | ½” NPT(F) / ½” BSP(F) | Female Thread |
| Process Connection | ½” NPT(M) / ½” BSP(M) | Male Thread |
This standardized threading allows easy integration with:
-
Pressure gauges
-
Pressure transmitters
-
Pressure switches
-
Mechanical dial indicators
No specialized adapters are typically required, reducing installation time.
7. Operating Conditions
The MT-A100CE is engineered for high-performance operation under demanding conditions:
| Parameter | Specification |
|---|---|
| Maximum Working Pressure | 600 bar |
| Maximum Working Temperature | 250°C |
| Approx. Weight | ~290 g |
These operational limits make it suitable for systems with high thermal energy and elevated pressure levels.
8. Advantages of Using Cooling Element MT-A100CE
Utilizing the MT-A100CE offers multiple performance and lifecycle advantages:
-
Protects Sensitive Sensors: Prevents overheating and thermal shock.
-
Improves Accuracy Over Time: Stable working conditions enhance signal consistency.
-
Extends Service Life: Reduces equipment downtime and replacement costs.
-
Compatible with Multiple Instrument Types: Enhances system flexibility.
-
Reliable in Harsh Industrial Environments: Supports heavy-duty operational conditions.
This makes the MT-A100CE a cost-effective solution for long-term system reliability and sensor protection.
9. Conclusion
The Cooling Element MT-A100CE is an essential component for maintaining safe and accurate pressure measurement in high-temperature environments. With its SS316 AISI stainless steel construction, broad connection compatibility, and ability to handle working pressures up to 600 bar and temperatures up to 250°C, it provides reliable performance across a wide range of industrial sectors.
For industries requiring stable measurement, operational protection, and long-term equipment durability, the Cooling Element MT-A100CE is a dependable and efficient solution.
