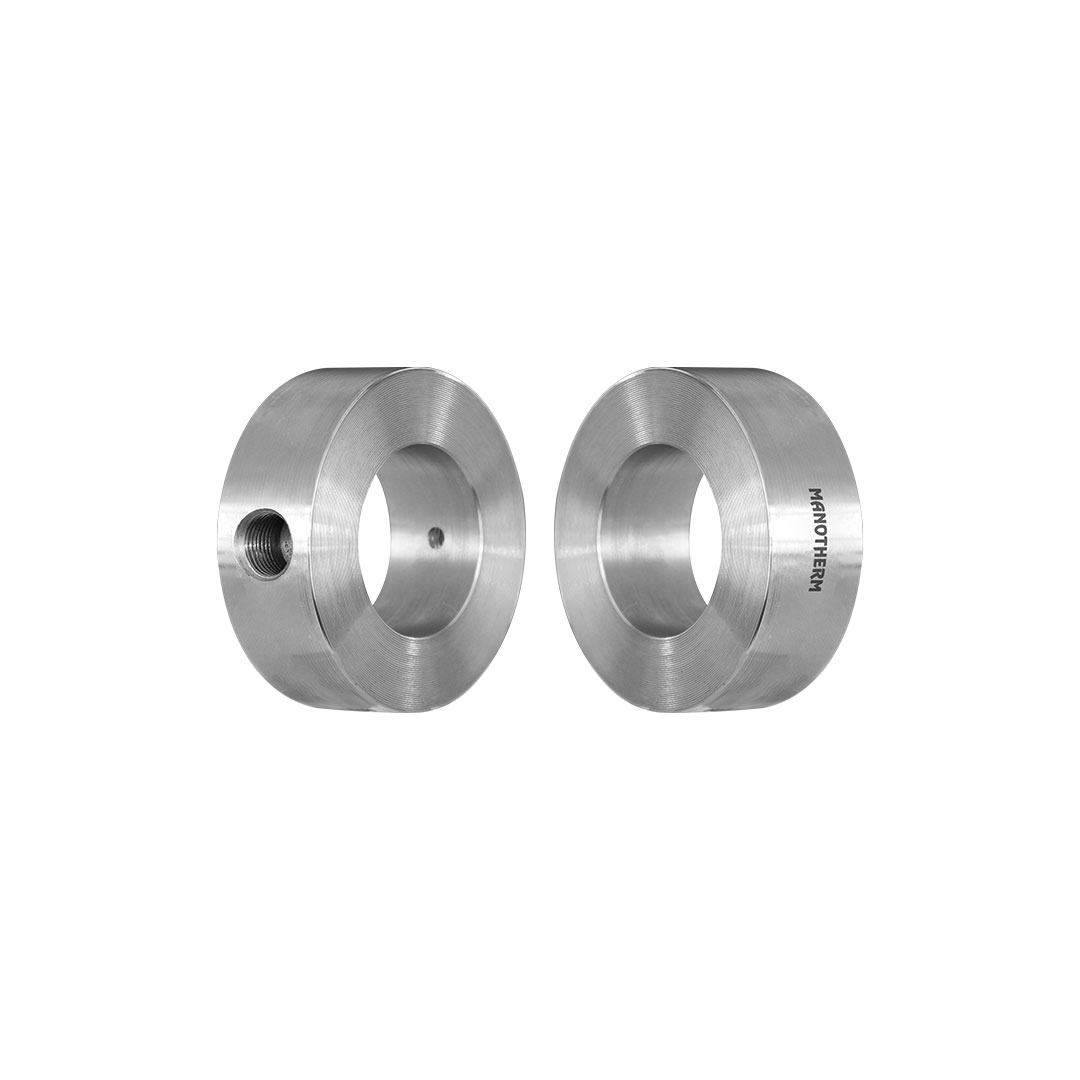

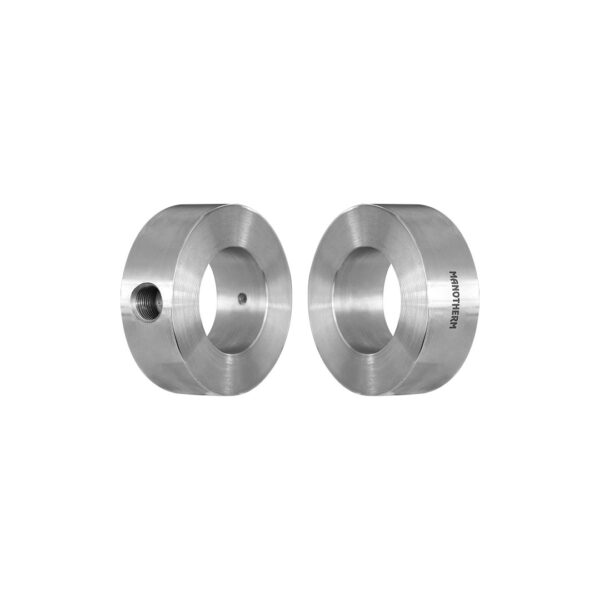

Flushing Ring MT-A100FR

Description

1. Introduction to Flushing Ring MT-A100FR

The Flushing Ring MT-A100FR is an essential accessory used in process measurement systems to ensure the reliable performance of diaphragm seals. It is designed to allow flushing, venting, and cleaning of the diaphragm seal cavity, particularly in applications where the process media is viscous, crystallizing, or contains solid particles. By providing direct access to the diaphragm area, the flushing ring maintains accurate pressure transmission and prevents clogging or buildup that could lead to measurement errors or equipment damage.

The MT-A100FR improves measurement reliability and reduces downtime by simplifying the maintenance process. It is widely used in industries such as chemical processing, petrochemical refining, oil & gas production, food and beverage processing, and wastewater treatment systems.

---

2. Key Features of MT-A100FR

The Flushing Ring MT-A100FR comes with enhanced functional and structural features that support high-performance operation in demanding environments:

• Dual Flushing Ports: Enables flushing from either side to efficiently remove crystallized or sticky media.

• Seal Line-In & Flanged Designs: Allows compatibility with various diaphragm seal configurations and process equipment.

• Optional Exotic Materials: Can be manufactured from materials other than stainless steel (such as Hastelloy, Monel, Duplex) for corrosive service requirements.

• Pressure Rating Up to 600#: Suitable for high-pressure industrial systems.

• Effective Flushing of Crystalized Media: Prevents diaphragm blockage, ensuring accurate pressure measurement.

• Diaphragm Cleaning Support: Extends the service life of both diaphragm seals and transmitters.

These features make MT-A100FR a robust and reliable solution for maintaining diaphragm seal performance across critical process applications.

---

3. Importance of Flushing Rings in Industrial Systems

In many industrial processes, media such as slurries, heavy oils, polymers, and crystallizing liquids tend to harden or accumulate within the seal chamber. This can cause:

• Pressure transmission delays

• Reduced measurement accuracy

• Permanent diaphragm damage

• Complete instrument failure

The MT-A100FR prevents such issues by enabling the operator to flush the diaphragm cavity without removing the instrument. This not only ensures continuous operational performance, but also reduces maintenance time, operational cost, and plant downtime.

---

4. Typical Industrial Applications

The MT-A100FR is commonly used in systems where media buildup is expected or where sanitary cleaning cycles are required:

• Chemical and Petrochemical Processing

• Oil & Gas Refining

• Pulp and Paper Manufacturing

• Food & Beverage Production

• Water and Wastewater Treatment

• Pharmaceutical Processing

In these applications, the flushing ring ensures consistent and accurate pressure readings in demanding environments.

---

5. Material and Construction Quality

The Flushing Ring MT-A100FR is manufactured from AISI SS316, a high-grade stainless steel known for its:

• Superior corrosion resistance

• Long service life

• Mechanical strength

• Compatibility with a variety of process fluids

For aggressive or highly corrosive media, optional exotic materials such as:

• Hastelloy C-276

• Monel 400

• Duplex Stainless Steel

can be selected to improve compatibility and longevity.

---

6. Design and Dimensional Standards

The MT-A100FR is designed in accordance with recognized international flange standards:

These specifications allow the flushing ring to be installed seamlessly between the diaphragm seal and the process nozzle.

---

7. Connection and Installation Details

The MT-A100FR is installed directly between the diaphragm seal and process flange. The dual flushing ports allow operators to connect flushing lines, pressure relief hoses, or cleaning agents.

• Instrument Side Flange: Matches diaphragm seal size

• Process Side Flange: Matches pipeline or vessel nozzle

• Flushing Ports: ½” NPT Female, typically supplied plugged

This installation ensures minimal instrumentation modification while enhancing maintenance efficiency.

---

8. Operating Conditions and Pressure Ratings

The MT-A100FR supports high-pressure and high-temperature environments based on the selected flange and material ratings:

Always verify system pressure and temperature conditions before installation for safe operation.

---

9. Performance Benefits of Using MT-A100FR

Using the Flushing Ring MT-A100FR provides several operational advantages:

• Prevents Clogging: Keeps diaphragm chamber free from deposits.

• Maintains Accuracy: Ensures continuous and precise pressure measurement.

• Extends Instrument Service Life: Reduces wear and chemical corrosion.

• Reduces Maintenance Downtime: Enables easy cleaning without removing the instrument.

• Enhances Safety: Prevents over-pressurization and diaphragm failure due to media blockage.

This leads to improved process stability, instrument reliability, and system efficiency.

---

10. Conclusion

The Flushing Ring MT-A100FR is an indispensable component for ensuring the accuracy and longevity of diaphragm seal-based pressure measurement systems in industries working with high-viscosity, crystallizing, or contaminated fluids. Its dual flushing ports, optional material flexibility, high-pressure capability, and standardized flange dimensions make it a reliable and cost-effective solution for maintaining system performance.

For industries requiring reliable diaphragm cleaning without operational interruption, the Flushing Ring MT-A100FR offers a robust and efficient solution that optimizes measurement accuracy and equipment life.
