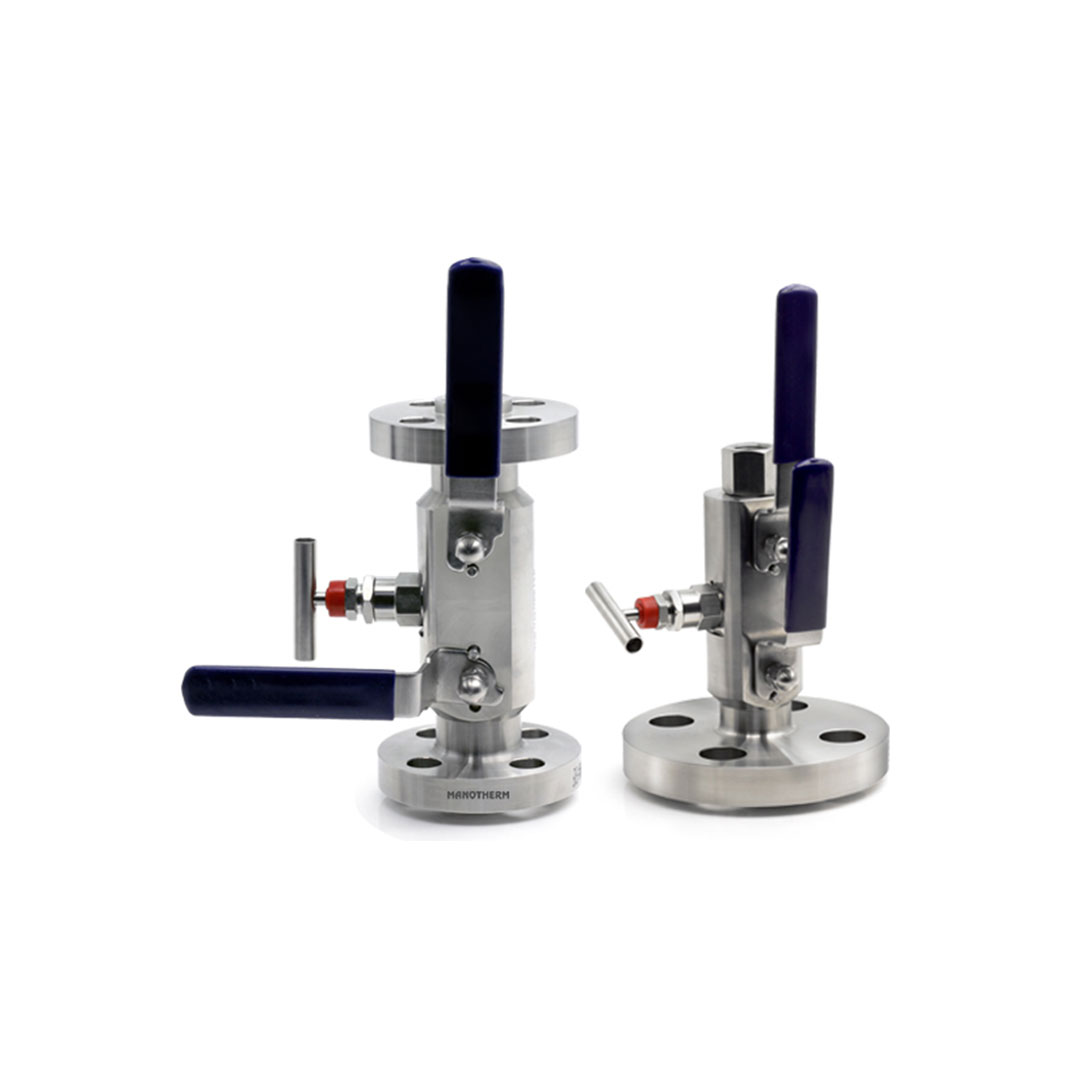

Integral Block and Bleed Valve MT-M100BV

Description

1. Introduction to Integral Block and Bleed Valve MT-M100BV

The Integral Block and Bleed Valve MT-M100BV is a precision-engineered solution for controlling, isolating, and venting process lines in various industrial applications. Designed for high-pressure systems, it integrates both block and bleed functionalities into a single compact valve assembly, ensuring safety, reliability, and operational efficiency.

Widely used in petrochemical, chemical, oil & gas, power, and other process industries, the MT-M100BV simplifies instrumentation setups while maintaining precise control over fluids and gases. Its versatile design allows use in critical lines where accurate measurement and isolation are required.

---

2. Key Features

The MT-M100BV offers a range of features that make it ideal for demanding applications:

• Single and double block and bleed configurations.

• Flanged inlet connections from ½” to 2″ per 16.5B ANSI standards.

• Rated for high-pressure classes ranging from 150 Class to 2500 Class.

• Female threaded NPT outlet and vent connections for flexible piping integration.

• Suitable for needle, globe, Y & OS, and ball valve configurations.

• Reinforced PEEK/PTFE seats for enhanced chemical resistance and durability.

• PTFE or graphite packing options for leak-tight operation.

• Trim materials including Hastelloy, Monel, Duplex 316, and SS 316 for corrosion resistance.

• Compact integral design combining block and bleed functions in a single unit.

These features ensure precise isolation, venting, and control while maintaining high operational reliability.

---

3. Applications

The Integral Block and Bleed Valve MT-M100BV is widely applicable in:

• High-pressure instrumentation lines requiring isolation and venting.

• Petrochemical and chemical plants for safe and reliable fluid handling.

• Oil & gas pipelines and measurement systems.

• Power and utility plants for pressure and flow control.

• Critical measurement systems where accurate flow isolation is required.

• Corrosive and aggressive media applications, thanks to customizable materials.

Its versatility makes it suitable for both general industrial and specialized high-pressure applications.

---

4. Working Principle

The MT-M100BV operates on an integral block and bleed principle:

• Block function isolates the process from the instrumentation line.

• Bleed function safely vents trapped fluid or gas before maintenance or calibration.

• Single block and bleed configuration allows one isolation point and one vent point.

• Double block and bleed configuration provides two independent isolation points and one vent point for added safety.

• Valve types include needle, globe, Y & OS, and ball, offering precise control over flow.

• Reinforced seating and packing ensure leak-free operation under high pressures.

This design ensures both operational safety and accurate process control.

---

5. Technical Specifications

---

6. Advantages

The MT-M100BV provides numerous advantages for industrial use:

• Compact design combines block and bleed in a single unit, saving space.

• High-pressure rating ensures safe operation under demanding conditions.

• Multiple valve configurations allow customization for specific applications.

• Corrosion-resistant materials ensure long-term durability and minimal maintenance.

• Leak-tight operation with reinforced seats and PTFE/graphite packing.

• Flexible connection options including flanged and threaded ports for easy integration.

• Suitable for both aggressive and standard process fluids.

These advantages make it an essential component for precise process control and instrumentation safety.

---

7. Installation Guidelines

For optimal performance, proper installation is critical:

• Verify pressure class, connection type, and media compatibility before installation.

• Ensure proper alignment with process lines to avoid stress on the valve body.

• Tighten flanged connections according to manufacturer torque specifications.

• Connect outlet and vent ports using compatible NPT fittings.

• Confirm accessibility for operation, maintenance, and inspection.

• Inspect the valve for integrity and leak-free operation before commissioning.

Correct installation maximizes operational efficiency and safety.

---

8. Maintenance Recommendations

Routine maintenance ensures long-term reliability:

• Inspect seats, packing, and valve trim for wear and corrosion.

• Replace PTFE or PEEK seats and packing as needed to maintain leak-tight operation.

• Check valve operation periodically to ensure smooth movement.

• Clean vent ports and connections to prevent blockages.

• Verify all connections and fasteners remain tight under operational conditions.

Regular maintenance minimizes downtime and ensures precise operation in high-pressure systems.

---

9. Conclusion

The Integral Block and Bleed Valve MT-M100BV is a versatile, high-performance solution for high-pressure instrumentation systems. Its robust design, multiple configurations, and corrosion-resistant materials make it ideal for petrochemical, chemical, oil & gas, and power industries.

With both single and double block and bleed options, customizable valve types, and a compact integral design, the MT-M100BV ensures reliable isolation, venting, and measurement in critical applications. Its combination of precision, durability, and operational safety makes it a critical component for modern industrial process control.
