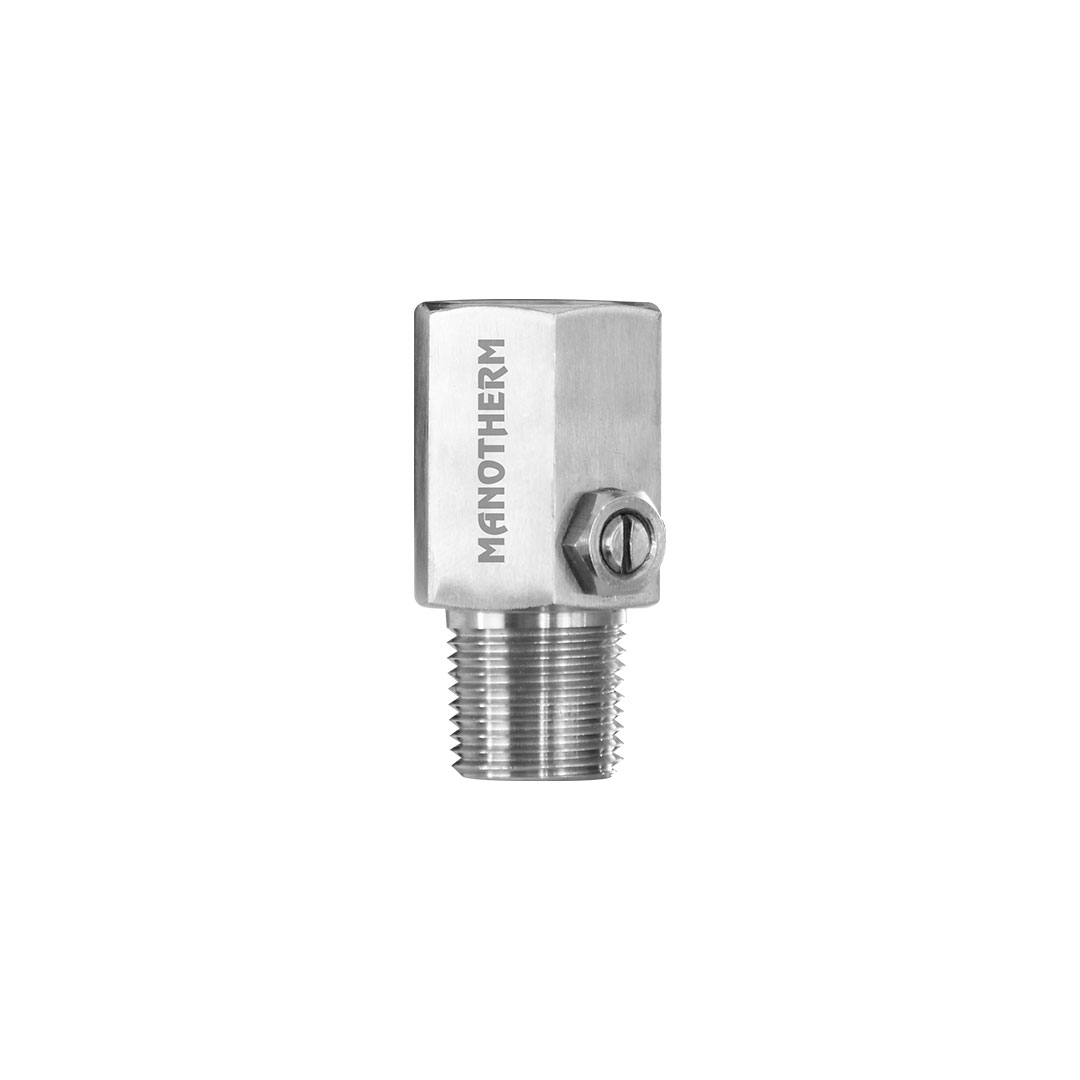

Pressure Gauge Snubber MT-A100SN

Description

1. Introduction to Pressure Gauge Snubber MT-A100SN

The Pressure Gauge Snubber MT-A100SN is a precision-engineered device designed to provide reliable protection for pressure measuring instruments operating in dynamic or pulsating pressure environments. When pressure gauges, transmitters, or switches are exposed to highly fluctuating media, the measurement readings often become unstable, inaccurate, or difficult to read. More critically, the internal mechanisms of the measuring instrument may become damaged due to continuous pressure spikes. The Pressure Gauge Snubber MT-A100SN solves this problem by reducing the effect of process fluid pulsation, ensuring stable readings and extending instrument life.

Manufactured using SS 316 AISI stainless steel, the MT-A100SN is designed for durability, corrosion resistance, and performance in harsh industrial environments. Its adjustable needle design allows users to fine-tune the damping level depending on the level of pulsation in the process line, making it suitable for a wide range of liquids and gases. With a maximum working pressure of 400 bar, it is especially useful in heavy-duty applications such as oil & gas, petrochemical processing, chemical dosing systems, power generation, and industrial automation.

---

2. Key Features of Pressure Gauge Snubber MT-A100SN

The Pressure Gauge Snubber MT-A100SN includes several performance-focused features that ensure measurement accuracy and long-term reliability:

• All SS Construction: The device is constructed entirely from SS 316 AISI, offering excellent resistance to corrosion, pressure, and temperature changes in industrial environments.

• Adjustable Needle Design: The adjustable needle valve allows the user to control the flow rate of the media, effectively damping pressure fluctuations and enabling smooth gauge readings.

• Reduces Effect of Process Media Pulsation: By controlling pulsation, the snubber prevents pointer oscillation and protects sensitive components inside gauges and sensors.

• High Durability and Long Service Life: Built to withstand heavy vibration, harsh chemical exposure, and continuous pressure cycling.

---

3. Why Pressure Gauge Snubber MT-A100SN is Essential

In many process applications, pressure readings need to remain steady and accurate for safety and control reasons. When process fluid pulsation is not controlled, it can cause:

• Rapid needle oscillation on analog gauges

• False readings or noisy signals in transmitters

• Premature mechanical wear or internal seal failure

• Unsafe system operation due to inaccurate pressure feedback

The Pressure Gauge Snubber MT-A100SN acts as a buffer between the pressure source and the measuring instrumentation. By gradually equalizing the pressure changes, it ensures that only smooth and stabilized pressure signals reach the instrument. This is essential for:

• Increasing the lifespan of measuring devices

• Improving data logging accuracy

• Maintaining safety compliance standards

• Reducing maintenance and instrument replacement costs

---

4. Standard Parameters and Technical Specifications

These specifications make the MT-A100SN compatible with a wide variety of pipeline and process systems. The Viton seals ensure strong chemical resistance, while the temperature and pressure ratings allow for safe usage in high-performance industrial applications.

---

5. Applications of Pressure Gauge Snubber MT-A100SN

The Pressure Gauge Snubber MT-A100SN is designed to operate effectively across numerous industries where pressure monitoring is critical. Common application sectors include:

a. Oil and Gas Industry

Used in wellheads, separators, and transmission pipelines where high pulsation is frequent.

b. Petrochemical and Chemical Processing

Protects measuring instruments from corrosive and high-viscosity fluids.

c. Power Generation Plants

Ensures the reliability of gauges and transmitters in turbine and boiler monitoring systems.

d. Water Treatment Systems

Helps maintain stable readings in pumps and pressurized filtration systems.

e. Manufacturing and Automation

Used to stabilize pressure readings for automated control systems and hydraulic machinery.

---

6. Installation and Operating Guidelines

The Pressure Gauge Snubber MT-A100SN is easy to install and requires minimal maintenance. For optimal performance, follow these guidelines:

1. Ensure that the ½” NPT process and instrument connections match the equipment.

2. Install the snubber directly before the pressure gauge or transmitter.

3. Turn the adjustable needle screw to regulate the damping effect:

   • For heavy pulsation: tighten the needle to restrict flow.

   • For mild pulsation: loosen to allow freer flow.

4. Verify no leakage around connections; use suitable thread sealant if required.

5. Periodically inspect the snubber to ensure media contaminants have not clogged the flow path.

---

7. Advantages of Choosing Pressure Gauge Snubber MT-A100SN

• Longer lifespan of pressure measurement equipment

• Improved accuracy and readability of pressure gauges

• Reduced repair and maintenance downtime

• Adaptability to different media and pressure conditions

• Reliable performance in corrosive or high-temperature environments

These benefits make the Pressure Gauge Snubber MT-A100SN a cost-effective and necessary component in any industrial pressure monitoring system.

---

8. Conclusion

The Pressure Gauge Snubber MT-A100SN is a high-quality solution designed to protect pressure gauges, transmitters, and sensors from pulsation-induced wear and inaccurate readings. Its SS 316 AISI construction, adjustable needle damping design, and ability to withstand up to 400 bar of pressure make it suitable for demanding industrial environments. Whether used in oil & gas, power plants, chemical factories, or automated machinery systems, this snubber delivers stable performance, improved measurement reliability, and extended instrument lifespan.
