1. Introduction to Spare Parts for Pressure Gauges

Spare Parts for Pressure Gauges play a critical role in maintaining the functionality, accuracy, and longevity of pressure measuring instruments across a wide range of industrial environments. Pressure gauges are widely used in industries such as oil and gas, petrochemical, HVAC, manufacturing, water treatment, power generation, pharmaceuticals, and more. Over time, components of pressure gauges may wear out due to exposure to pressure fluctuations, corrosive media, temperature variations, vibration, or mechanical shock. Therefore, replacing essential spare parts is necessary to restore instrument performance and ensure long-term reliability.

High-quality spare parts not only maintain accurate pressure readings but also enhance operator safety, especially in applications involving high pressure or hazardous media. The availability of multiple material choices, sizes ranging from 40mm to 250mm, and different design configurations ensures compatibility with various gauge types including Bourdon tube gauges, capsule gauges, diaphragm gauges, and temperature gauges.

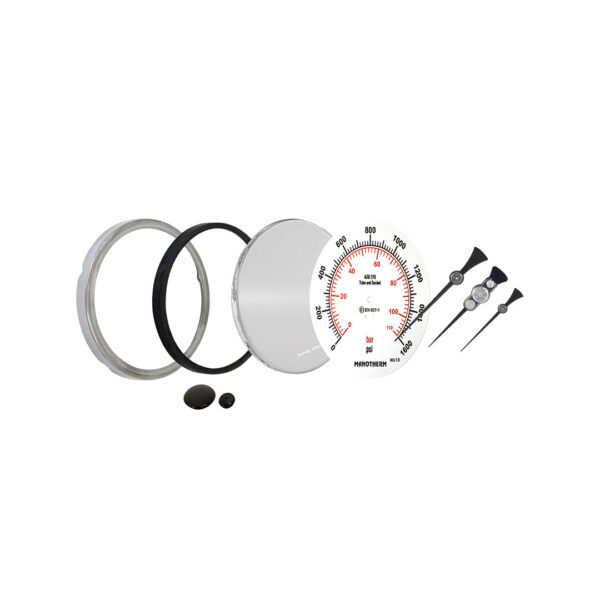

This document provides a detailed overview of key Spare Parts for Pressure Gauges, including glass, gasket, pointer, dial, and bezel ring options, along with their construction materials, size availability, and typical industrial applications.

2. Glass for Pressure Gauges

Glass is one of the most important protective components of a pressure gauge. It serves as a transparent barrier that shields internal indicators from dust, moisture, and mechanical damage, while allowing operators to clearly read the gauge display.

Glass Types Available

  • Safety Glass

  • Standard Glass

  • Acrylic Glass

Specifications

  • Size: 40mm to 250mm diameter

  • Material of Construction: High-quality Glass / Acrylic depending on specification

Key Advantages

  • High clarity and visibility

  • Protection against accidental impacts

  • Resistance to temperature variations

  • Acrylic glass offers lighter weight and shatter resistance for specific environments

Safety glass is particularly useful in high-pressure or hazardous applications, where the gauge face must not shatter into dangerous fragments. Acrylic glass is preferred for lightweight or portable systems.

3. Gasket for Pressure and Temperature Gauges

Gaskets ensure airtight sealing between the gauge housing and cover, preventing ingress of contaminants and leakage of pressurized media. Without a proper gasket, gauges can fog, corrode internally, or lose accuracy due to pressure leakage.

Gasket Materials

  • Neoprene

  • Buna-N (NBR)

  • NBR Rubber

Applications

  • Pressure gauges

  • Temperature gauges

  • Sealing high-pressure and corrosive environments

Key Benefits

  • Excellent elasticity and sealing performance

  • Resistant to oils, chemicals, and weathering

  • Durable under temperature fluctuations

Neoprene and NBR are widely used for industrial sealing due to their stability, affordability, and compatibility with common process fluids.

4. Pointer for Pressure Gauges

Pointers are responsible for visually indicating the measured pressure value on the gauge dial. High-quality pointers ensure precise and reliable display of pressure readings.

Pointer Types

  • Fixed (General, Temperature, Capsule gauges)

  • Slotted Adjustable

  • Micro-zero Adjustable

Specifications

  • Size: 40mm to 250mm

  • Material of Construction: Aluminum (lightweight and corrosion resistant)

Performance Features

  • Smooth pointer movement for accurate readings

  • Adjustable pointer options allow fine calibration

  • Micro-zero adjustable types enable zero-point corrections without disassembling the gauge

Micro-zero adjustable pointers are especially useful in process control applications where calibration shifts may occur due to temperature or pressure cycling.

5. Dial for Pressure Gauges

The dial provides the scale and readability necessary to interpret pressure values. A well-designed dial ensures accuracy and visibility even in poorly lit or outdoor environments.

Dial Types

  • Plain (Unprinted)

  • Printed (Standard markings or Custom logo)

Specifications

  • Size: 40mm to 250mm

  • Material: Aluminum, powder-coated white finish

  • Marking Colors: Black and Red lettering, custom color available on request

Advantages

  • High contrast for enhanced readability

  • Durable coating prevents fading and corrosion

  • Custom logo and marking service available for OEM branding

The dial design can significantly influence the safety and decision-making efficiency of operators in critical industrial systems.

6. Bezel Ring for Pressure Gauges

The bezel ring holds the glass and dial assembly securely to the gauge housing. It contributes to both the mechanical integrity and aesthetic finish of the gauge.

Bezel Ring Types

  • Pressed

  • Bayonet

  • Threaded

  • Crimped

Size Range

  • 40mm to 250mm

Material Options

  • AISI 304 Stainless Steel

  • Phenolic Resin

  • Pressed Steel

  • Optional: AISI 316 Stainless Steel (for corrosive environments)

Benefits

  • Enhanced durability and protection

  • Choice of sealing and assembly mechanisms

  • Stainless steel options for offshore or chemical service applications

Bayonet and threaded bezel rings are commonly used in industrial gauges requiring field servicing or internal access for calibration.

7. Importance of Choosing the Right Spare Parts

Using the correct spare parts ensures:

  • Accurate measurement consistency

  • Extended gauge service life

  • Protection from harsh environmental conditions

  • Improved operator and equipment safety

  • Lower maintenance and replacement costs

Compatibility in material and design prevents performance failure and supports ongoing system reliability.

8. Industries That Benefit from Spare Parts for Pressure Gauges

These spare parts are widely used in:

  • Oil & Gas Pipelines

  • Petrochemical Refineries

  • Pharmaceutical Manufacturing

  • Food & Beverage Processing Plants

  • HVAC and Building Services

  • Marine and Offshore Systems

  • General Industrial Machinery

Each industry requires reliable and durable measuring components to ensure safe and efficient operation.

9. Conclusion

Spare Parts for Pressure Gauges are essential to ensuring long-term accuracy, safety, and reliability in pressure measurement applications. From glass and gaskets to pointers, dials, and bezel rings, each component contributes to the performance and durability of the gauge system. With multiple sizes ranging from 40mm to 250mm and a variety of material choices including SS 304 / SS 316, aluminum, and engineered seal materials, these spare parts provide compatibility and performance across a wide range of industrial applications.

By selecting high-quality spare parts, industries can reduce downtime, maintain calibration accuracy, and ensure lasting equipment performance.
