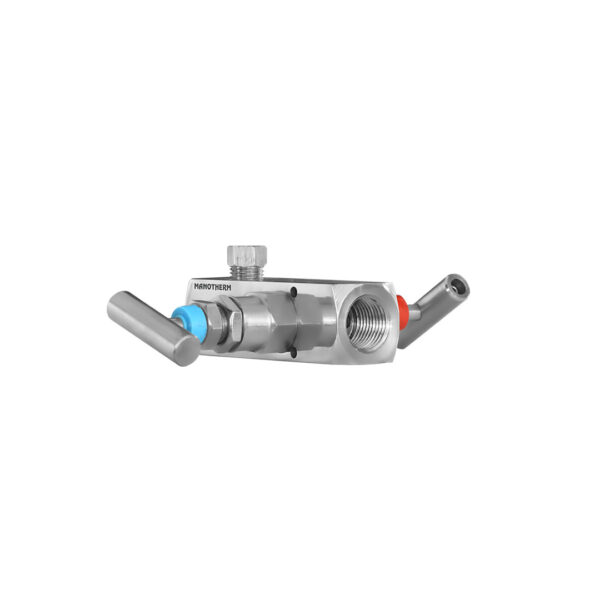

1. Introduction to Two Valve Manifold MT-M210MV
The Two Valve Manifold MT-M210MV is a compact and highly reliable flow control component designed specifically for pressure instruments, transmitters, and industrial measurement systems. As industries continue to require precise control of fluid and gas pressure lines, the Two Valve Manifold MT-M210MV stands out due to its direct mounting configuration, robust build quality, and convenient venting and isolation functionality. This product is widely used in refineries, petrochemical plants, gas processing units, and heavy industrial environments where durability, accuracy, and safety are essential.
The primary function of the Two Valve Manifold MT-M210MV is to provide an efficient method for instrument isolation and venting. This valve manifold features two key operational functions:
-
One valve for isolation
-
One valve for venting
This configuration ensures that the pressure transmitter or gauge can be isolated from the process line and vented safely during maintenance, calibration, or replacement—without interrupting the entire pipeline system. Designed to handle high-pressure shut-off, it performs reliably even under demanding operating conditions involving both gas and liquid service media.
2. Key Advantages of Two Valve Manifold MT-M210MV
The Two Valve Manifold MT-M210MV offers several practical advantages for industrial users:
-
Direct Mounting Design: The side-by-side mounting layout makes it easy to directly connect the manifold to transmitters and gauges, ensuring reduced installation time and improved stability.
-
Safe Venting and Isolation: The vent valve allows controlled release of line pressure, preventing sudden bursts or operational hazards.
-
Suitable for Gas & Liquid Services: Whether used in compressed gas systems, steam lines, or liquid pipelines, the valve maintains pressure integrity and leakage prevention.
-
High Pressure Shut-Off Capability: Designed to support high line pressures, it is suitable for critical applications where operational failure is not acceptable.
-
Robust Corrosion Resistance: With wetted parts constructed from SS 316 AISI, the valve manifold resists corrosion in aggressive industrial environments.
These advantages make the Two Valve Manifold MT-M210MV a preferred choice for engineers aiming to improve equipment reliability, operational control, and safety.
3. Design and Construction Features
The design of the Two Valve Manifold MT-M210MV emphasizes ease of use, performance longevity, and structural integrity:
-
Mounting: Side-by-Side Mounting
This layout ensures compact installation on transmitters and gauges without requiring additional support brackets. -
Material Quality: SS 316 AISI Wetted Parts
All wetted components are made from stainless steel 316 AISI, known for its high corrosion resistance and endurance under harsh environments. -
Stem Packing: PTFE Stem Packing
The use of PTFE packing helps ensure a tight seal around the stem, minimizing leakage and maintaining reliable valve control. -
Stem Tip: Conical Metal Tip
The hardened conical stem tip guarantees consistent sealing performance over repeated open/close cycles. -
Handle Style: T-Bar Handle
The ergonomic “T” shaped handle allows operators to open or close the valve with ease, even when wearing gloves in cold or hazardous conditions.
These construction features contribute to the long service life and reduced maintenance demands of the Two Valve Manifold MT-M210MV.
4. Operating Conditions and Performance
The Two Valve Manifold MT-M210MV is engineered for superior performance under high-pressure and high-temperature conditions.
| Parameter | Specification |
|---|---|
| Working Pressure (Max) | Up to 6000 psi (Standard) / Up to 15000 psi (OV Optional Upgrade) |
| Working Temperature (Max) | 240°C |
| Instrument Connection | ½” NPT (F) |
| Process Connection | ½” NPT (M) |
| Drain Port | ¼” NPT (F), Plugged |
The availability of optional higher pressure ratings allows users to select the appropriate model based on process requirements.
5. Applications of Two Valve Manifold MT-M210MV
The versatility of the Two Valve Manifold MT-M210MV makes it suitable for various industrial applications including:
-
Oil and Gas Processing Units
-
Chemical and Petrochemical Refineries
-
Steam and Boiler Pressure Systems
-
Water Treatment Facilities
-
Industrial Gas Distribution Lines
-
Flow and Pressure Measuring Skids
Wherever precise pressure control and safe venting are essential, this manifold ensures dependable operation.
6. Why Choose Two Valve Manifold MT-M210MV?
Choosing the Two Valve Manifold MT-M210MV provides operational reliability, simplified maintenance procedures, and enhanced safety around pressure measurement systems. Its strong build quality ensures long-term durability, while its direct installation design saves time and prevents alignment issues. The optional high-pressure performance rating also allows adaptability across standard and heavy-duty industrial environments.
For engineers and maintenance auditors looking for a proven solution in instrumentation control, the Two Valve Manifold MT-M210MV is a practical and efficient choice.
